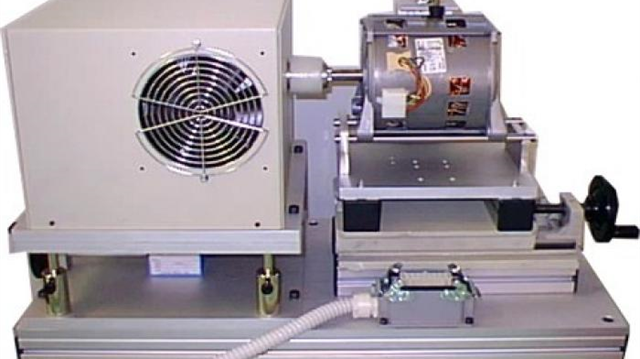

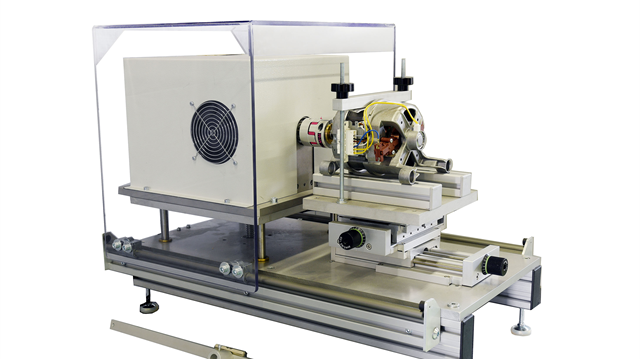

These passive brakes are designed to test AC-DC motors from 10W to 2KW with speeds from 100 to 20,000 RPM. There are two types of cooling for these brakes:
- 4220/xx models Convection cooling by means of a fan inserted in the brake
- 4220/ACxx models Cooling with compressed air
The main features of these brakes are the following:
- Maximum torque is available at all speeds
- The maximum residual torque is <1% of the f.s.
- The accuracy of the torque measurement is equal to:
- Models 4220 / xx: 0.2% of the f.s. + 1% of the read value
- Models 4220 / ACxx 0.2% or 0.1% or 0.05% of the f.s.
| Model | Max Torque [Nm] | Max Speed [RPM] |
| 4220/0.2 | 0.02 | 20.000 |
| 4220/0.5 | 0.05 | 20.000 |
| 4220/1 | 0.1 | 20.000 |
| 4220/3 | 0.3 | 12.000 |
| 4220/10 | 1 | 12.000 |
| 4220/AC10 | 1 | 20.000 |
| 4220/15 | 1.5 | 10.000 |
| 4220/AC15 | 1.5 | 20.000 |
| 4220/30 | 3 | 8.000 |
| 4220/50 | 5 | 6.000 |
| 4220/AC50 | 5 | 10.000 |
| 4220/120 | 12 | 5.000 |
| 4220/AC120 | 12 | 8.000 |
| 4220/240 | 24 | 5.000 |
| 4220/AC240 | 24 | 8.000 |
